Our wooden spools and reels are designed to provide support, protection, and facilitate the transportation of wires, cables, and other wound products. We manufacture each unit according to specific technical requirements, complying with market standards to ensure that your product retains its properties and remains in optimal condition.
We offer three types of materials for their construction:
- Solid wood
- MDF
- Plywood
We offer a wide variety of references and dimensions.
We design customized products according to your needs.
We evaluate your requirements to offer the best value for money.

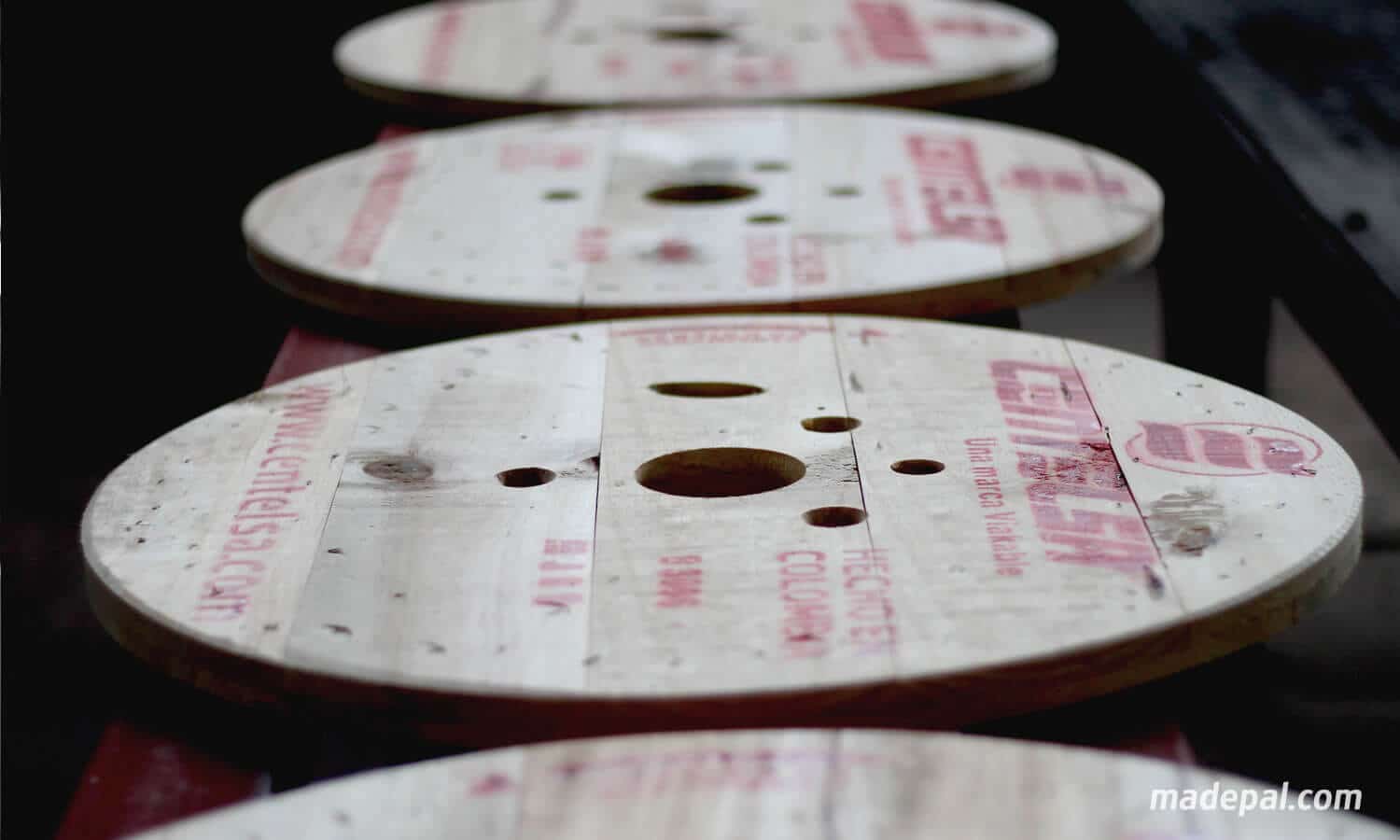

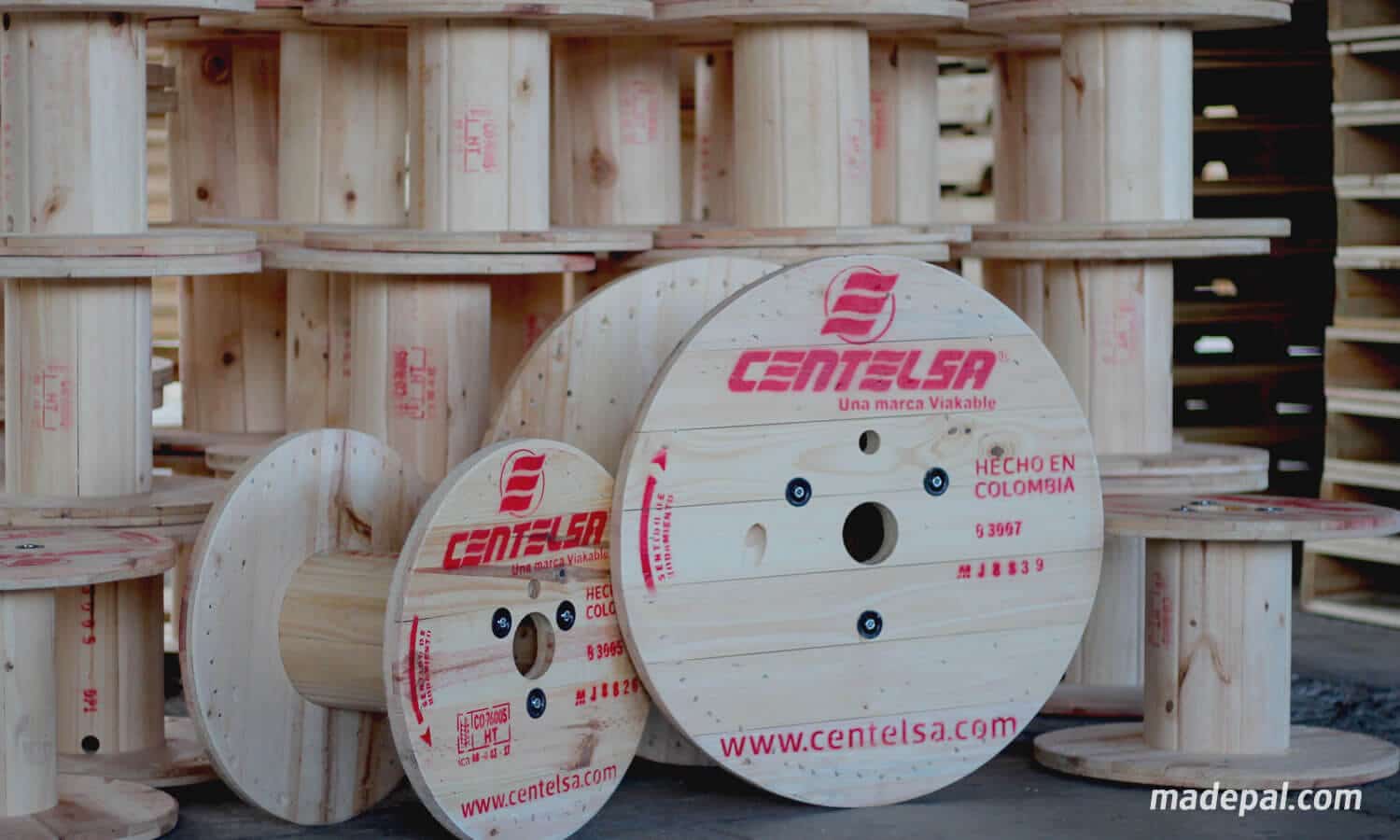

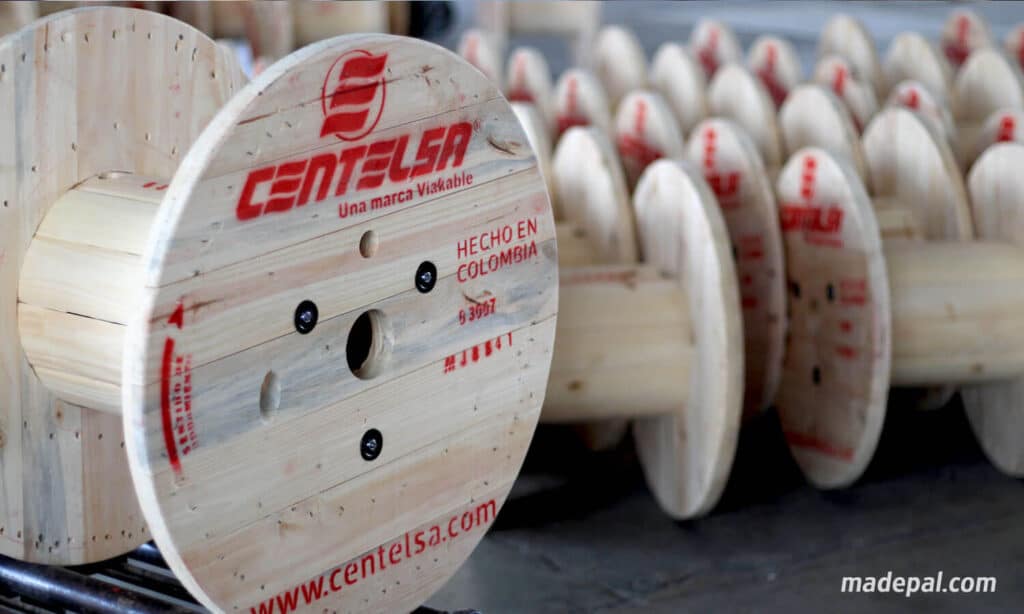

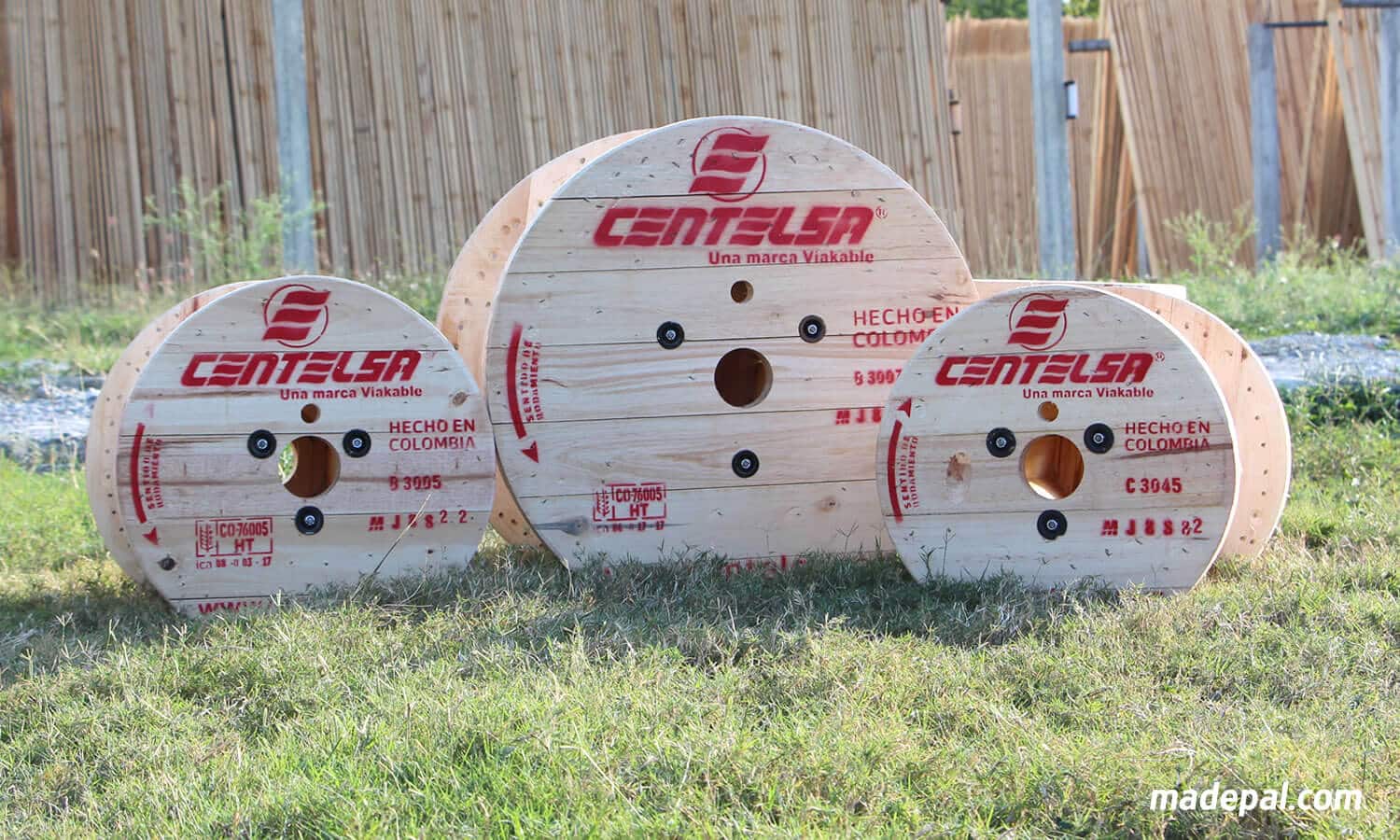

Wooden Spools
We manufacture spools and reels using plantation-grown wood and engineered wood products.
Solid Wood
We use wood from cultivated forests, mainly Pine and Cypress.
Engineered Wood
We use engineered wood products such as MDF and Plywood in combination with wood or cardboard.
Reels are also known as: Spools, Drums, Cable Reels, and Rolls.
Our Standard Sizes
Madepal Wooden Reels
At Madepal, we specialize in manufacturing high-quality wooden reels for a wide range of industrial applications. Our production line includes 19 standard sizes and a total of 23 different products.
Our Standard Sizes
We manufacture wooden reels with flange diameters ranging from 25 cm to 130 cm. Our standard references, based on diameter, are:
2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 8 | 8.5 | 9 | 9.5 | 10 | 11 | 12 | 13
Customization and Made-to-Order Manufacturing
In addition to our standard production line, Madepal has the capability to manufacture wooden reels with customized dimensions and specifications according to our customers’ requirements.
Reels and Spools

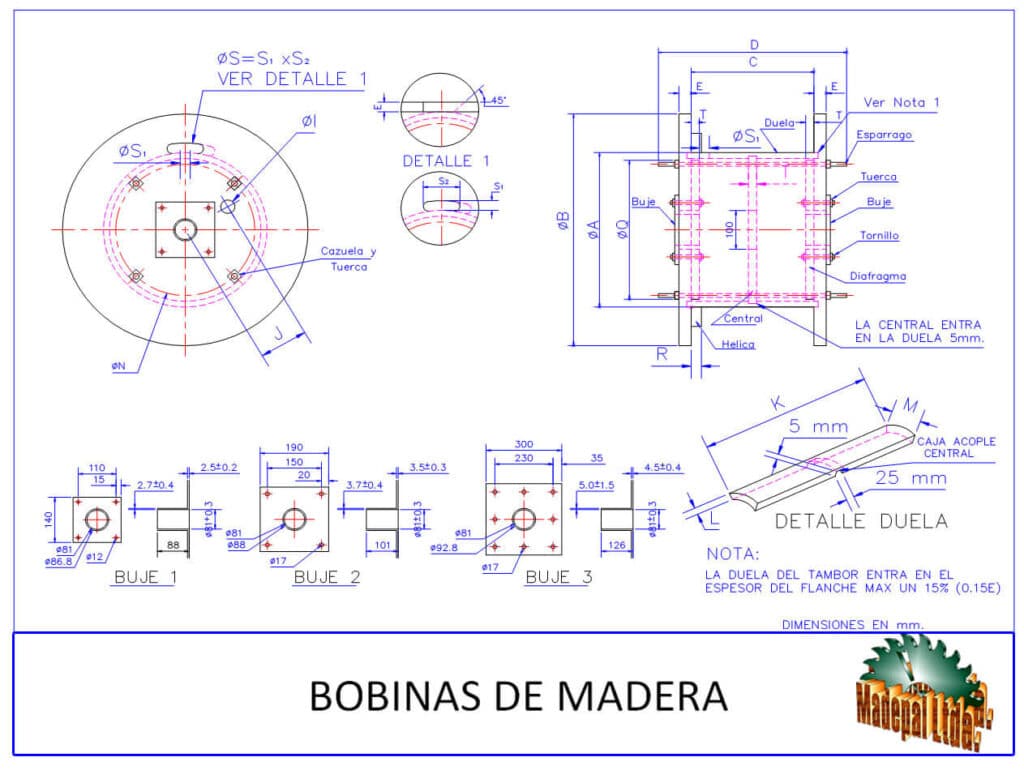

Our standard references and dimensions provide the technical specifications required to select the appropriate wooden reel for each application.
| Item | Ref. | Main Dimensions (mm) | KG | ||||
|---|---|---|---|---|---|---|---|
| A | B | C | D | Max Cap | Weight | ||
| Drum Diameter | Flange | F |–| F | Total L. | ||||
| 1 | #2.5 | 110 | 250 | 195 | 223 | 20 | 1 |
| 2 | #3 | 110 | 300 | 195 | 223 | 35 | 1,2 |
| 3 | #3.5 | 110 | 340 | 245 | 278 | 60 | 2 |
| 4 | #4 | 150 | 400 | 250 | 294 | 85 | 4 |
| 5 | #4.5 | 200 | 450 | 300 | 358 | 108 | 5,3 |
| 6 | #5 | 200 | 500 | 300 | 358 | 140 | 6,2 |
| 7 | #5.5 | 250 | 550 | 350 | 408 | 185 | 8 |
| 8 | #6 | 250 | 600 | 350 | 408 | 230 | 11 |
| 9 | #6.5 | 300 | 650 | 400 | 474 | 297 | 14 |
| 10 | #7 | 300 | 700 | 400 | 474 | 356 | 16 |
| 11 | #7.5 | 350 | 750 | 450 | 524 | 437 | 19 |
| 12 | #8 | 350 | 800 | 450 | 524 | 513 | 21 |
| 13 | #8.5 | 400 | 850 | 500 | 574 | 621 | 24 |
| 14 | #9 | 400 | 900 | 500 | 594 | 711 | 32 |
| 15 | #9.5 | 450 | 950 | 550 | 644 | 842 | 36 |
| 16 | #10 | 450 | 1000 | 550 | 644 | 954 | 43 |
| 17 | #11 | 500 | 1100 | 600 | 694 | 1238 | 53 |
| 18 | #12 | 550 | 1200 | 650 | 764 | 1562 | 80 |
| 19 | #13 | 600 | 1300 | 700 | 814 | 1935 | 90 |
| 20 | #14 | 650 | 1400 | 800 | 914 | 2480 | 105 |
